3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V

Name: 3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V
Brand: SZSSTH/OEM
Price: 1 USD

China 3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V factory

Place of Origin : Guangdong, China

Brand Name : SZSSTH/OEM

Model Number : RA

MOQ : 5 pieces

Price : CN¥1,315.79/pieces

Network : SDK

Type : DC/AC Inverters

Output Type : DUAL

Output Current : Load

Output Frequency : 50Hz/60Hz

Size : 241*345*121 mm

Weight : 6.1KG

Output waveform : Prue Sine Wave

Rated power : 3000W

Peak power : 6000W

Frequency : 50/60 HZ

Shell Material : lron

Applicable Battery Type : Lead acid/LiFePO4/NCM batteny

Charging Method : Constant current/constant voltage (CC/Cv)

Cooling Method : Air Cooling

Operating Temperature : -10℃~+45℃

Warranty : 12 Months

Contact Now

3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V

Electrical specifications
Model
Applicable Battery Type				Lead acid/LiFePO4/NCM battery
Charging Method				Constant current/constant voltage (CC/CV)
Cooling Method				Air Cooling
Charge
Input	Voltage Range		180~264VAC
		Frequency Range		47-63HZ
		Maximum Effciency		≥91% @220VAC
		Maximum Current		15Amax
		PF value		≥0.95
		Surge Current		＜60ACold Start
Output	Rated Voltage		13.2V (maximum charging voltage14.8V)
		Rated Current		100A
		Maximum Power		1400W
		Voltage Accuracy		±0.8V
		Current Accuracy		≤8%
		Load Regulation		≤5%
		Dynamic Load Regulation		≤5%
		Battery Charging Voltage		10.5V-14.5V

Inverter
Input	Voltage Range		10.5~16V DC
		Maxmum Effciency		92%
		Maximum Current		180A 12.5V/280A 12.5VDC
Output	Rated Voltage		220Vac @≥12.5 VDC
		Rated Current		13.64A @≥12.5VDC
		Output Frequency		50Hz/60Hz
		Maximum Power		2 000W (peak power4000W) @≥12VDC
		Maximum Power			3000W (peak power6000W) @≥12VDC
		Power Factor		≥0.95
		THD		≤3% (resistive load)
		Bypass Power		1800W.MAX(NA)
		Charge And Discharge At The Same Time		Charge1400W+Bypass1800W(NA)
		Bypass Inverter Switching Time		≤30 ms (NA)
Others	Shell Material		Iron
		Reference Weight		6.1KG
		Color		/
		Reference Size		241 * 345 * 121 mm
		Reference Packaging		/

Refer to product appearance picture

Power Derating Curve

Product Feature

1.Intelligent fan: The intelligent cooling fan switches on automaticallywhen the temperature ofthe autoconverter reaches 38 °C

2.Greater compatibility: Applicable to all electrical appliances in daily life

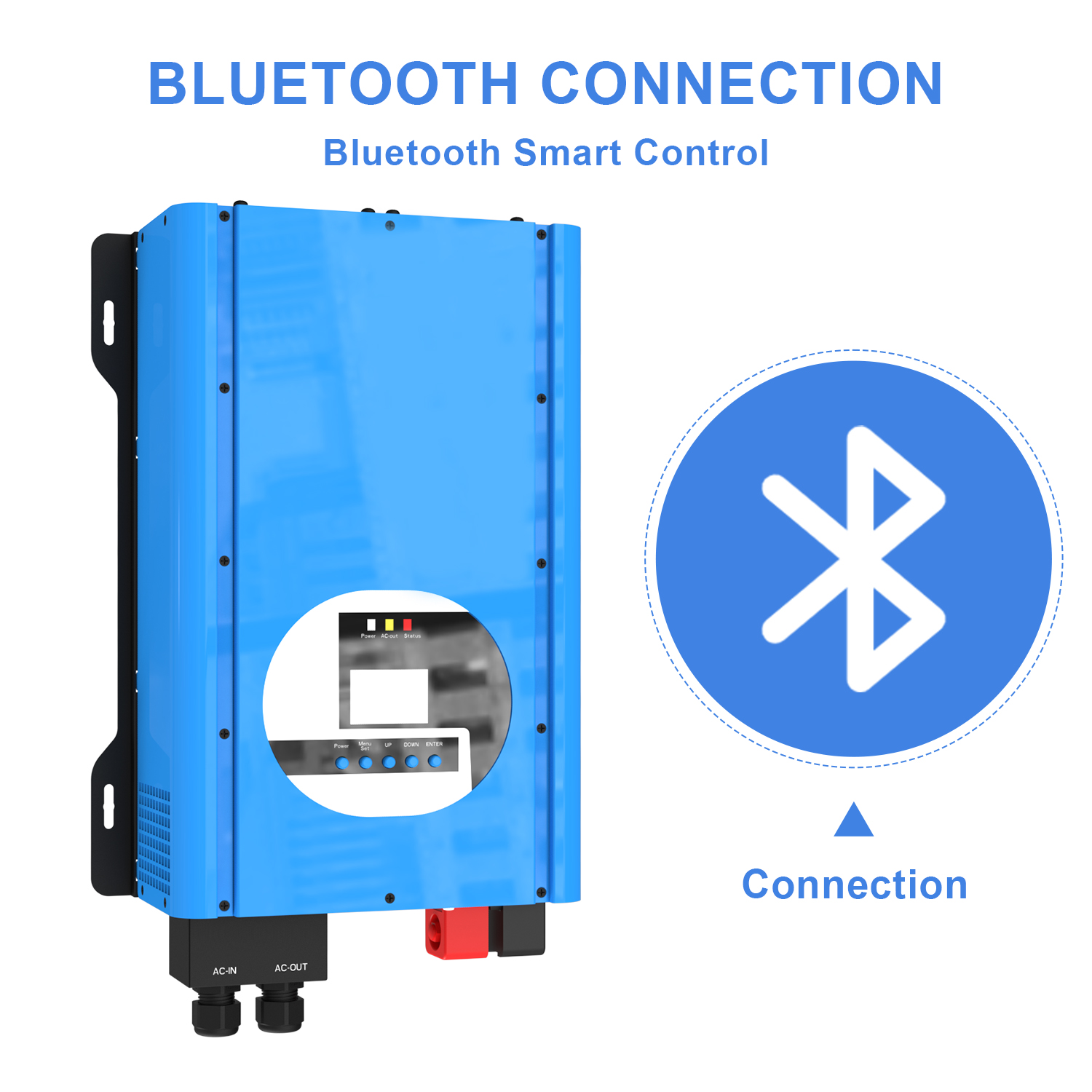

3.BT CONNECTION: BT Smart Control

4.APP Remote Monitoring: Inverter operation status, fault prompt.clear and clear query by Yijian

5.Operating Temperature: Not afraid of cold and heat

6.LCD SCREEN: Real-time data monitoring Push buttons to control the machine

7.Applicable battery type: Lead acid/LiFePO4/NCM battery

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products

Rated Products

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
